Electrical Specifications |
|
|
Frequency Range |
1160-1280MHz |
|
Gain(dBi) |
6±1dBi |
|
VSWR |
≤1.8 |
|
Polarization |
Vertical |
|
Horizontal Beam width(0º) |
360º |
|
Vertical Beam width(0º) |
22º |
|
Ovality(dB) |
≤±2dB |
|
Input Impedance（Ω） |
50Ω |
|
Maximum input power(W) |
100W |
|
Input connector type |
N-J |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Dimensionsmm(Height/Width/Depth) |
ɸ32*650mm |
|
Packing size(mm) |
670*300*240mm |
|
Antenna weight(kg) |
0.39KG |
|
Rated Wind Velocity（m/s) |
60m/s |
|
Operational Humidity(％) |
10- 95 |
|
Ra dome Color |
Black |
|
Ra dome material |
Glassed steel |
|
Operating temperature(ºC) |
-40～55 º |
|
Installation Method |
Machine installation |
Horizontal Beam Width Diagram

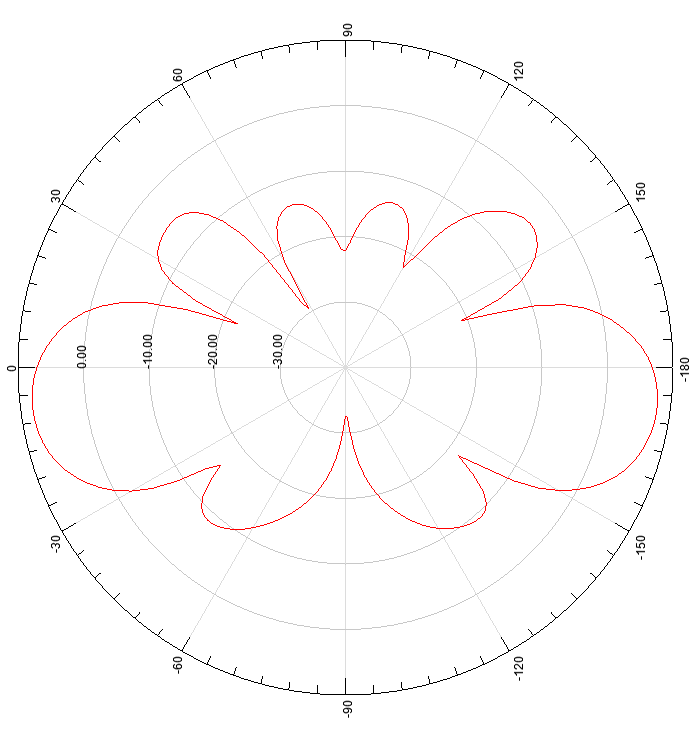

Vertical Beam Width Diagram
